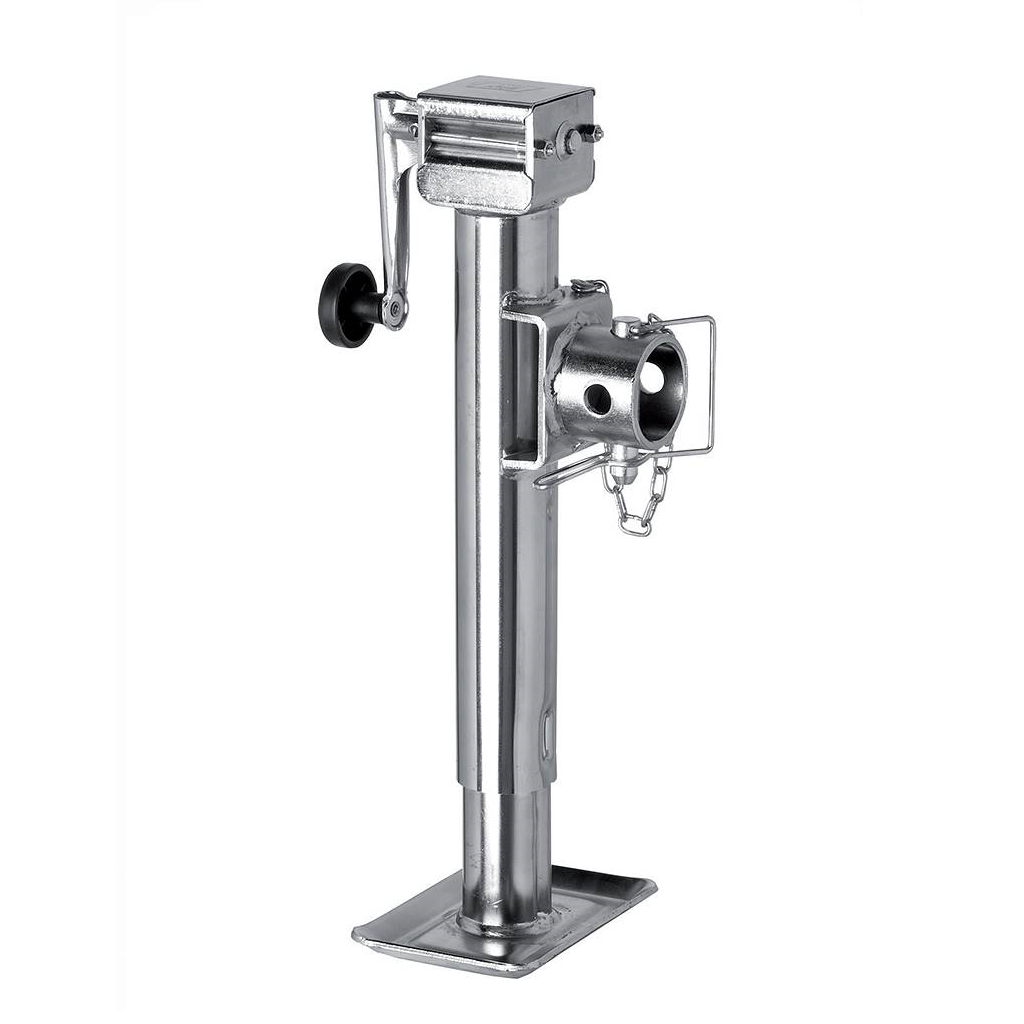

Side Winding Trailer Jacks – Type LR

ROC

Side Winding Trailer Jacks – Type LR

Sale price
SKU: ROC-LR

Our solutions can be customised to provide the ideal support for your applications.

Contact us today to discuss your requirements.

Contact

A sidewind lifting jack is a mechanical device designed to lift and lower trailers or other heavy equipment. Unlike top wind jacks, where the handle is positioned on top of the jack, sidewind jacks have a handle that’s mounted on the side. This unique design allows for easier and more efficient operation, particularly when the top of the jack may be obstructed.

Our solutions can be customised to provide the ideal support for your applications. Contact us today to discuss your requirements.

Code

Outer Tube (mm)

Screw Stroke (mm±10)

Unit Weight (kg)

Max Static Load (kg)

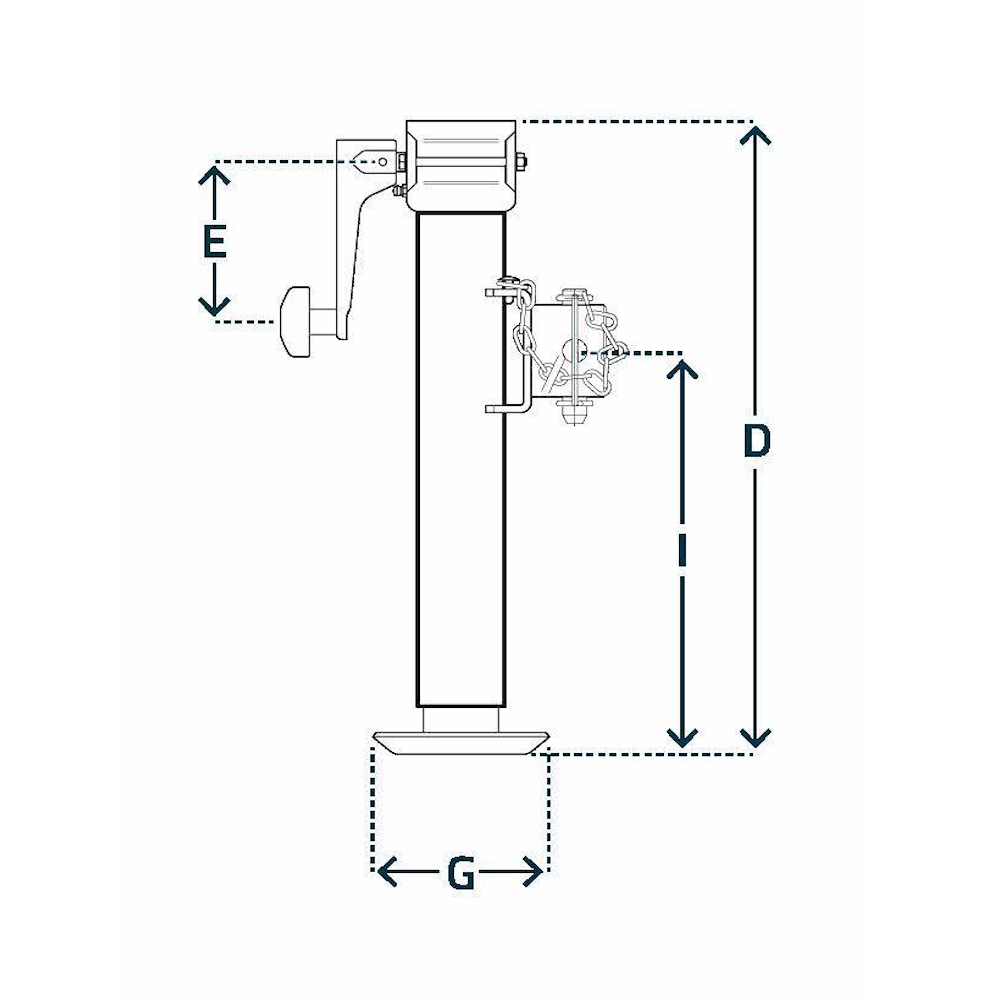

D

E

G

I

LR 3102

Ø57

250

6.1

1300

425

110

120 x 165

265

LR 3152

Ø57

365

7.1

1300

550

110

121 x 165

390
