Side Winding Parking / Lifting Jacks – Type DG 3SF
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.
Choose options
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.

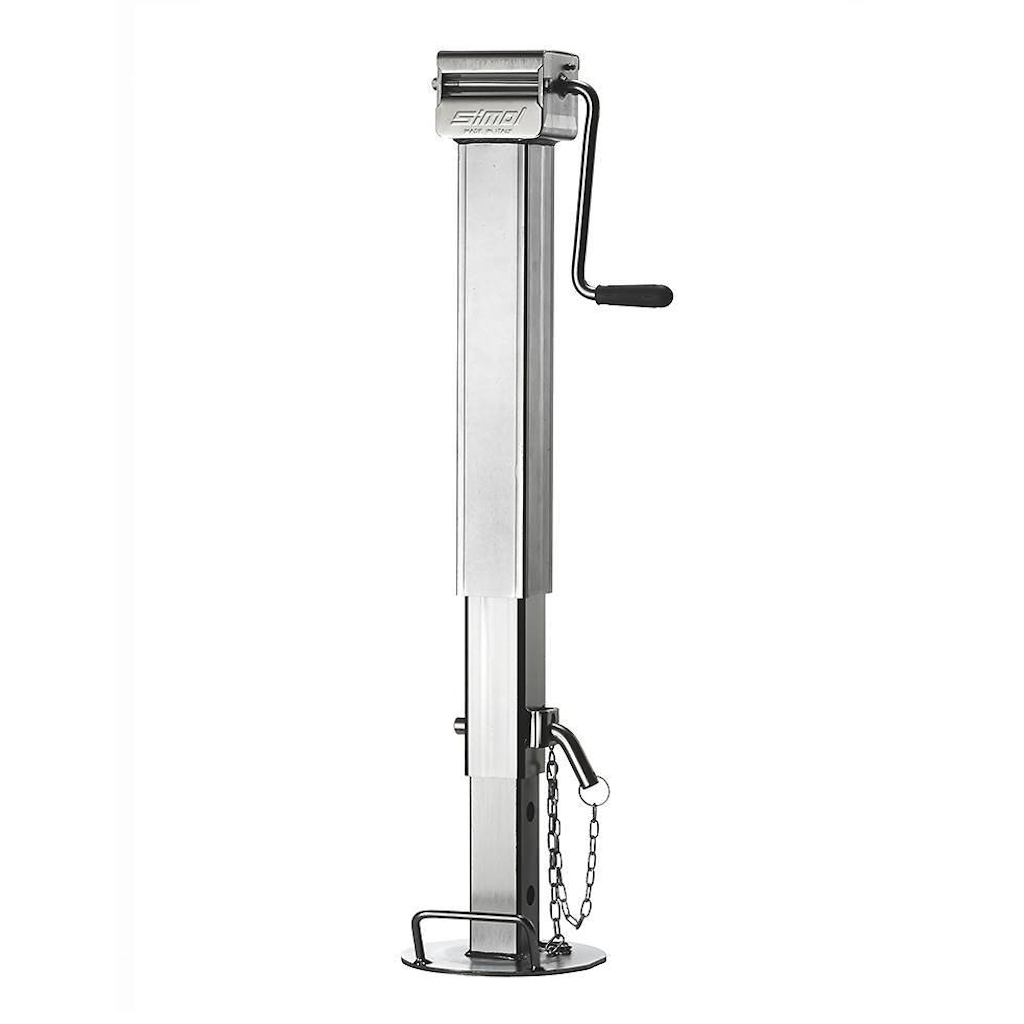

A sidewind lifting jack is a mechanical device designed to lift and lower trailers or other heavy equipment. Unlike top wind jacks, where the handle is positioned on top of the jack, sidewind jacks have a handle that’s mounted on the side. This unique design allows for easier and more efficient operation, particularly when the top of the jack may be obstructed.
Our solutions can be customised to provide the ideal support for your applications. Contact us today to discuss your requirements.
|

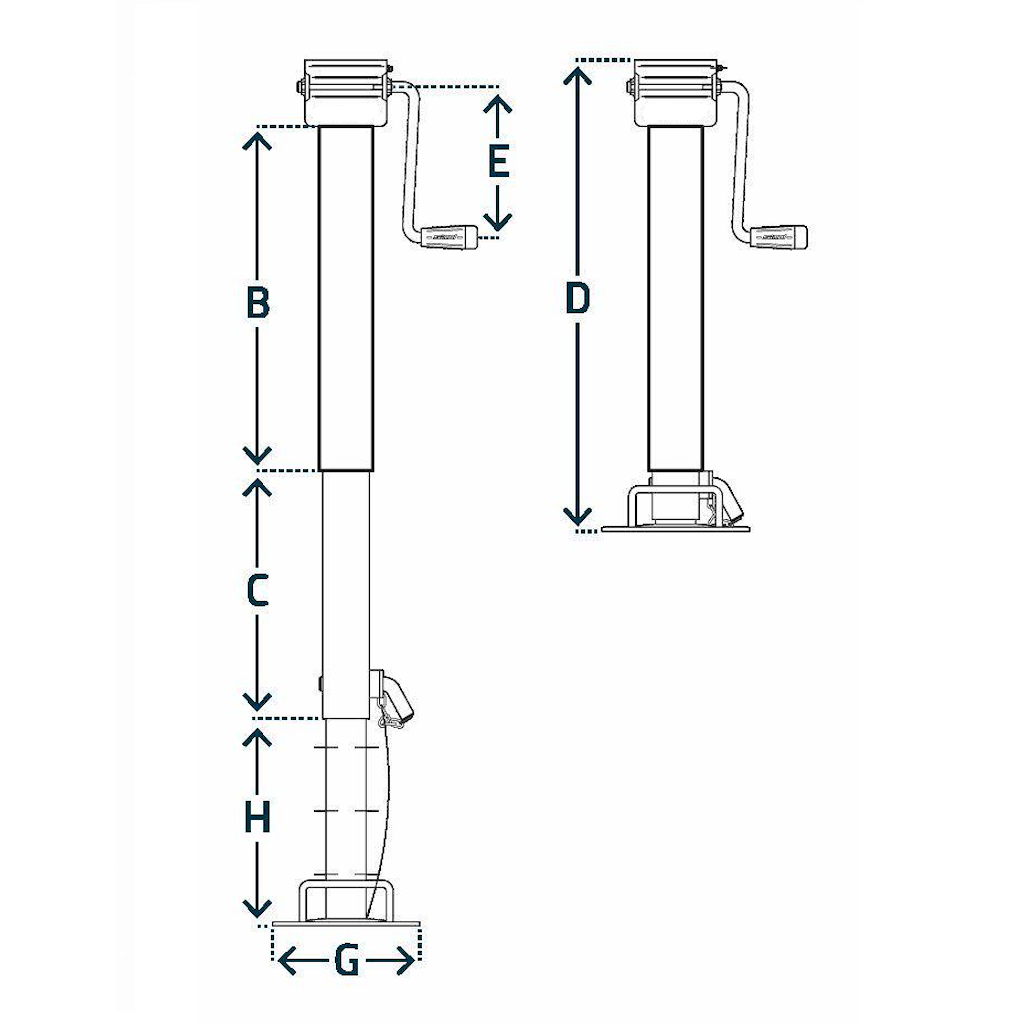

Code |
Outer Tube (mm) |
Screw Stroke (mm±10) |
Unit Weight (kg) |
Max Static Load (kg) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
H (mm) |
|
DG 706/3SF** |
80 x 80 |
300 |
21 |
2500 |
500 |
380 |
685 |
225 |
220 |
276 |
|
DG 487/3SF** |
90 x 90 |
360 |
30.2 |
3000 |
600 |
440 |
760 |
225 |
280 |
400 |
|
K 450** |
110 x 110 |
310 |
32 |
4500 |
600 |
360 |
690 |
325 |
250 |
300 |
