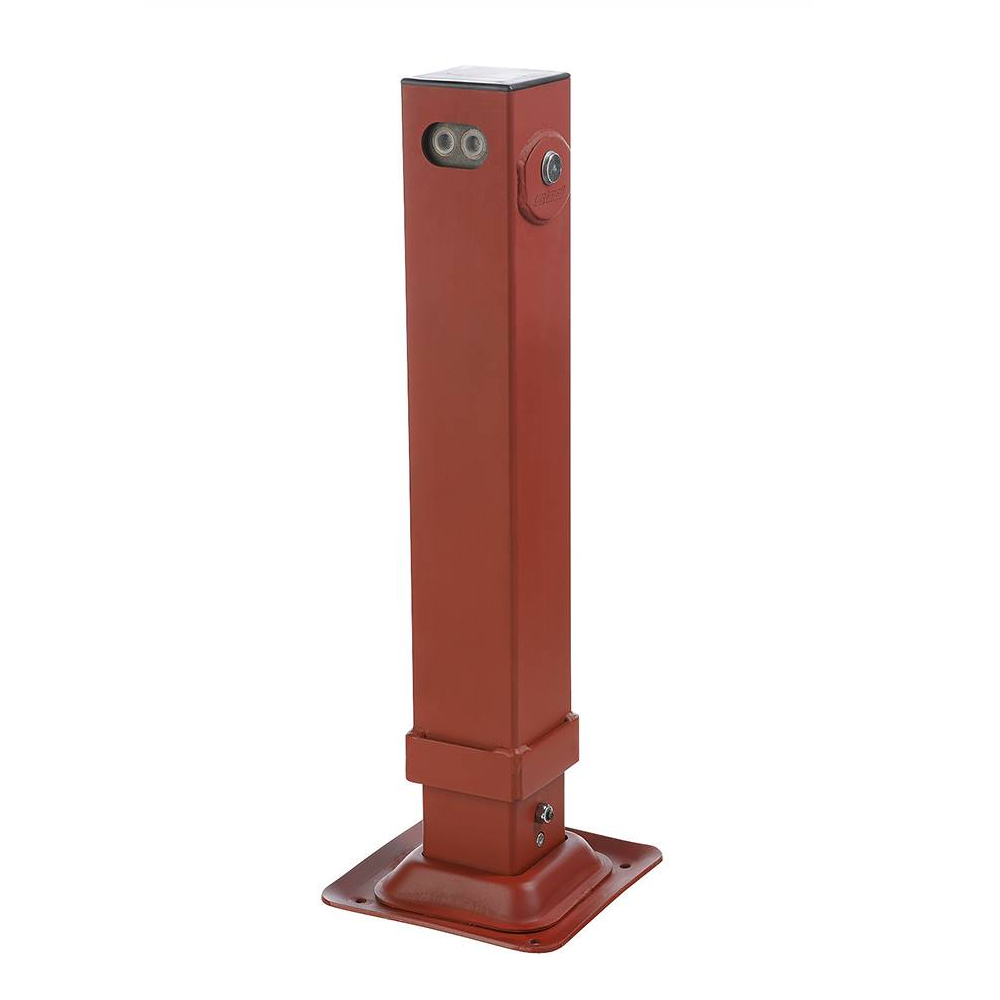

Double-acting hydraulic jack with a block valve and welded foot, equipped with one safety valve. Designed for use in agricultural machinery, trailers, caravans, car trailers, construction equipment, aircraft docking systems, and ground support equipment (GSE).
|
Code |
Outer Tube (mm) |
Screw Stroke (mm±10) |
Unit Weight (kg) |
Max Static Load (kg) |

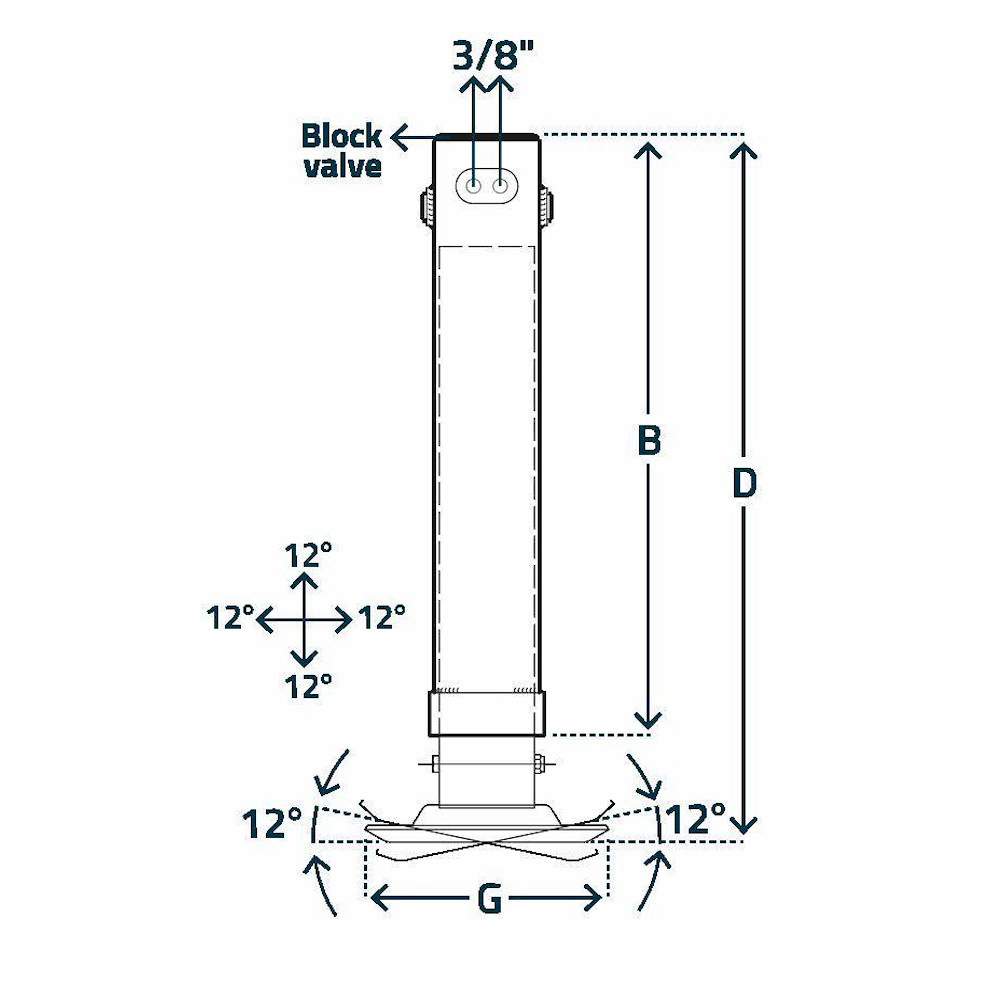

B |
D |
G |
|
H 1140P* |
110 x 110 |
400 |
39 |
3800 |
635 |
750 |
250 |
|
H 1150P* |
110 x 110 |
500 |
41 |
3800 |
735 |
850 |
250 |
|
H 1160P* |
110 x 110 |
600 |
45 |
3800 |
835 |
950 |
250 |
|
H 1170P* |
110 x 110 |
700 |
49.2 |
3800 |
935 |
1050 |
250 |
