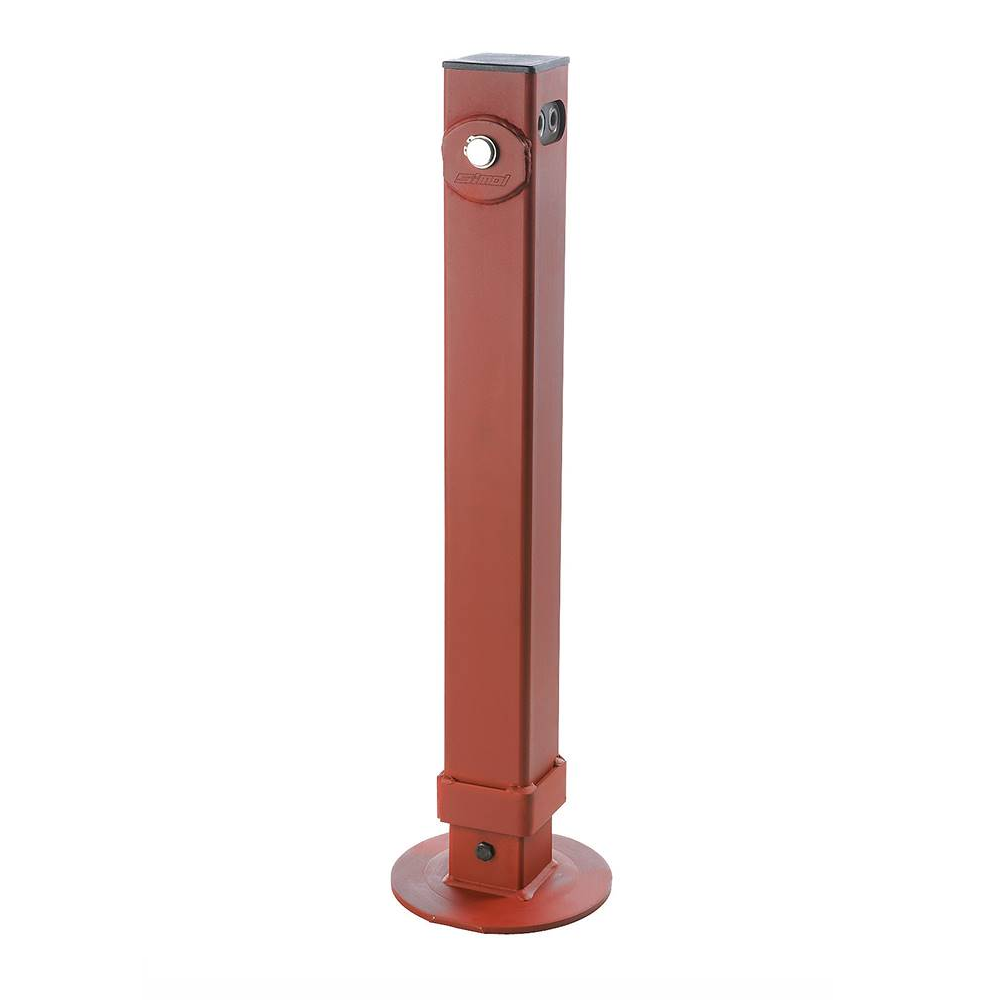

Hydraulic Parking Jack - Type H
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.
Choose options
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.
Our solutions can be customised to provide the ideal support for your applications.
Contact us today to discuss your requirements.
Double-acting hydraulic jack with a block valve and welded foot, equipped with one safety valve. Designed for use in agricultural machinery, trailers, caravans, car trailers, construction equipment, aircraft docking systems, and ground support equipment (GSE).
|
Code |
Outer Tube (mm) |
Screw Stroke (mm±10) |
Unit Weight (kg) |
Max Static Load (kg) |
B |
D |
G |
|
H 940* |
90 x 90 |
400 |
23 |
1950 |
630 |
720 |
220 |
|
H 950* |
90 x 90 |
500 |
25 |
1950 |
730 |
820 |
220 |
|
H 970* |
90 x 90 |
700 |
35.5 |
1950 |
930 |
1020 |
220 |
|
H 1040* |
100 x 100 |
400 |
30 |
2800 |
630 |
720 |
280 |
|
H 1050* |
100 x 100 |
500 |
32.5 |
2800 |
730 |
820 |
280 |
