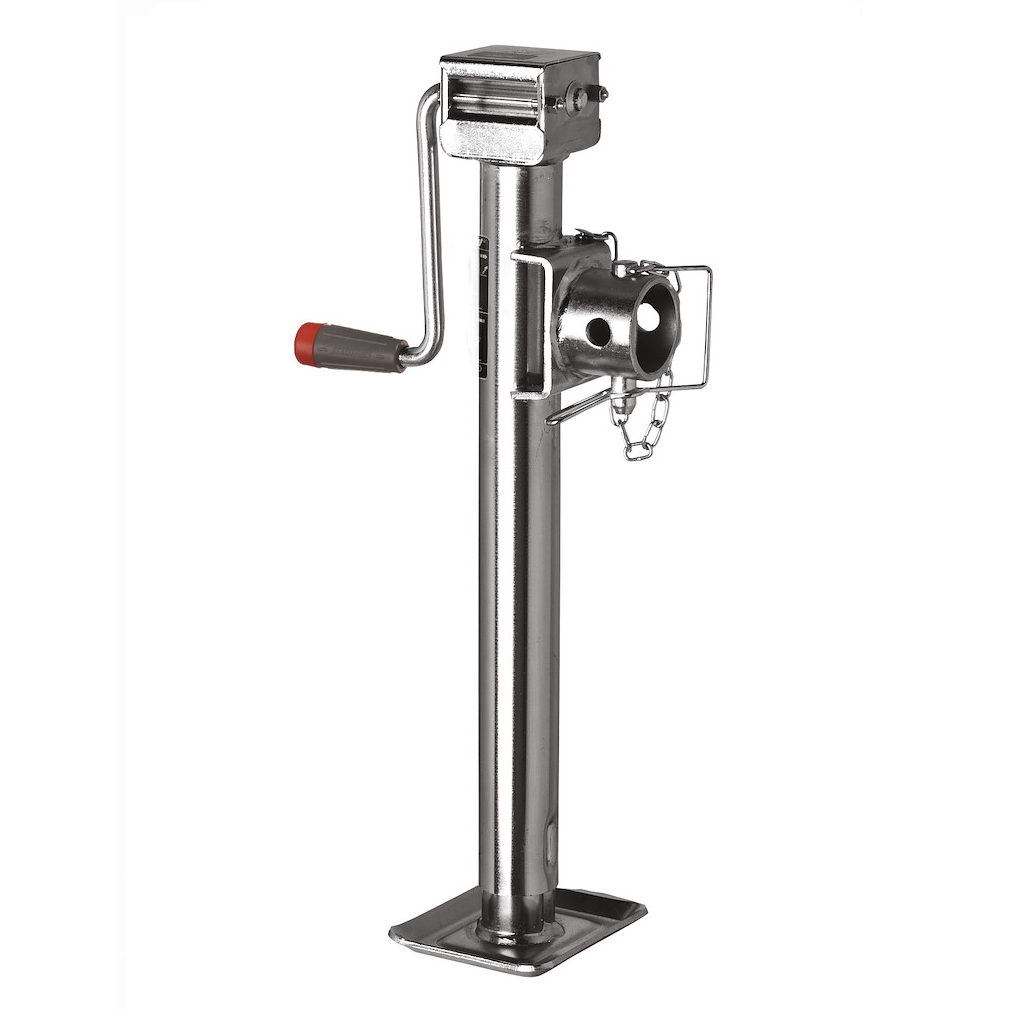

A sidewind lifting jack is a mechanical device designed to lift and lower trailers or other heavy equipment. Unlike top wind jacks, where the handle is positioned on top of the jack, sidewind jacks have a handle that’s mounted on the side. This unique design allows for easier and more efficient operation, particularly when the top of the jack may be obstructed.
Our solutions can be customised to provide the ideal support for your applications. Contact us today to discuss your requirements.

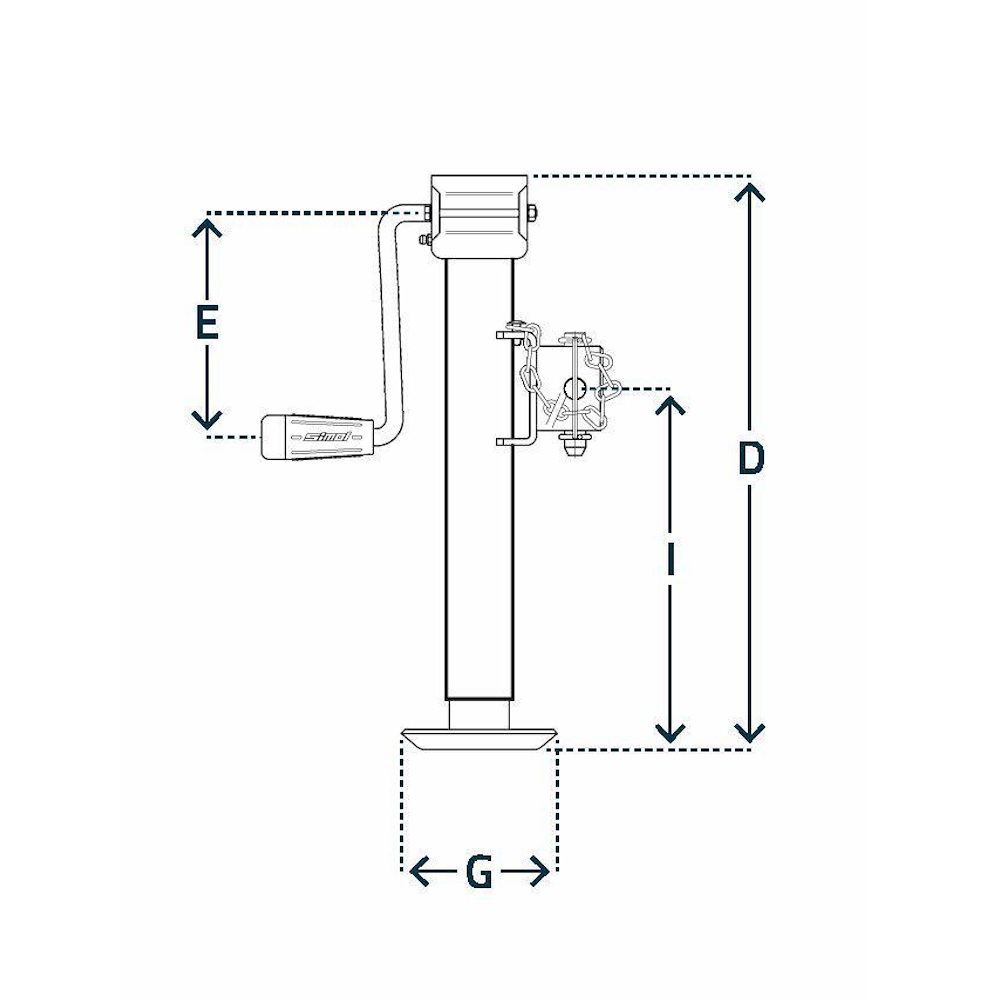

Code
Outer Tube (mm)
Screw Stroke (mm±10)
Unit Weight (kg)
Max Static Load (kg)
D
E
G
I
LT 2103*
Ø51
250
5.6
900
425
165
120 x 140
265
LT 2153*
Ø51
365
6.5
900
550
165
120 x 140
390
LT 3103*
Ø51
250
6.1
1300
425
165
120 x 165
265
LT 3153*
Ø51
365
7.1
1300
550
165
120 x 165
390
Production & Dispatch Details
Every ROC product is crafted in-house, giving us full control over quality and finish. We typically hold stock, but our standard lead time is around 4 weeks. For bespoke solutions, time frames may be longer depending on design and specification.
We ship worldwide and can provide a robust metal stillage crate for maximum protection during transit.
Speak to our team today to confirm current lead times and get your order moving.
